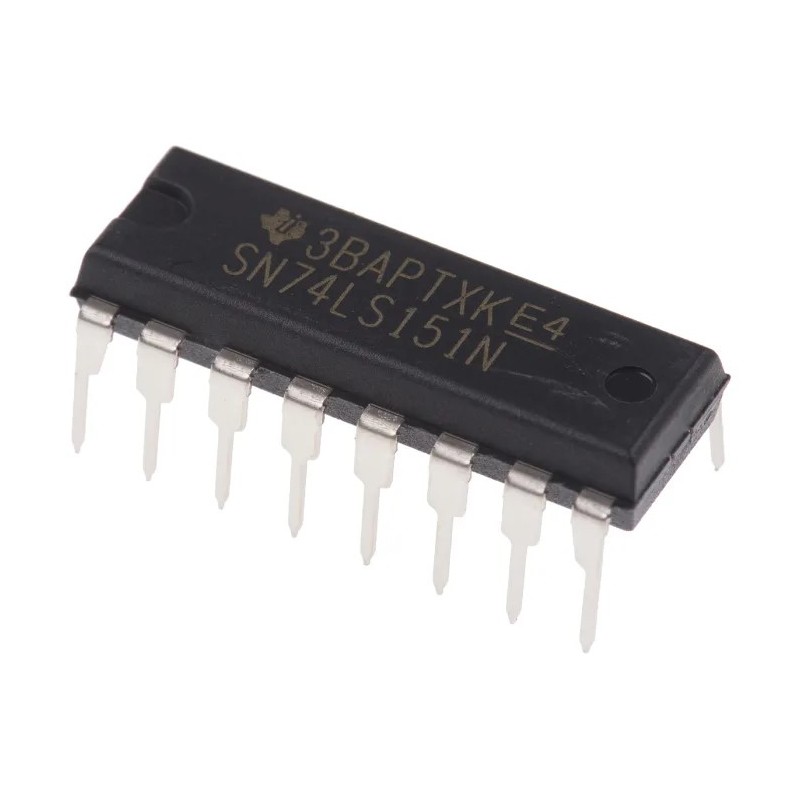

74LS151 - DIP

275,000 ریال

بدون مالیات 1الی 2 روز کاری

TTL 74151- 8-INPUT MULTIPLEXER

Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Product: Selectors / Multiplexers
- Logic Family: LS
- Number of Input Lines: 8 Input
- Number of Output Lines: 1 Output
- Propagation Delay Time: 38 ns
- Supply Voltage - Max: 5.25 V
- Supply Voltage - Min: 4.75 V
- Maximum Operating Temperature: + 70 C
- Mounting Style: Through Hole
- Package/Case: PDIP-16
- Packaging: Tube
- Brand: Texas Instruments
- Function: Data Selector/Mux
- Height: 4.57 mm
- High Level Output Current: - 0.4 mA
- Input Voltage: 2.0 V to 0.8 V
- Length: 19.3 mm
- Logic Type: Data Selectors/Multiplexers
- Low Level Output Current: 8 mA
- Maximum Clock Frequency: 35 MHz
- Minimum Operating Temperature: 0 C
- Number of Circuits: Quad
- Operating Supply Voltage: 5 V
- Operating Temperature Range: 0 C to + 70 C
- Output Current: 8 mA
- Output Voltage: + 0.4 V to + 0.5 V
- Series: SN74LS151
- Factory Pack Quantity: 25
- Supply Current - Max: 6000 uA
- Technology: Bipolar
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی74151 یک مالتی پلکسر 8 کاناله می باشد.
