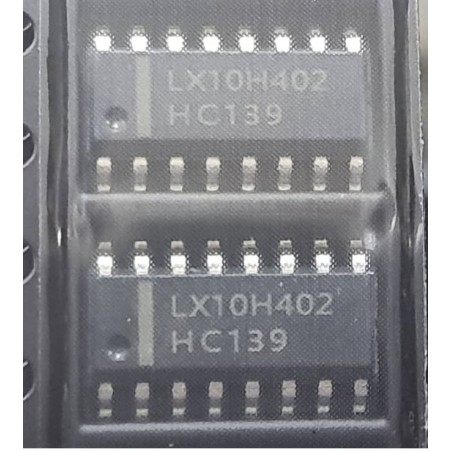

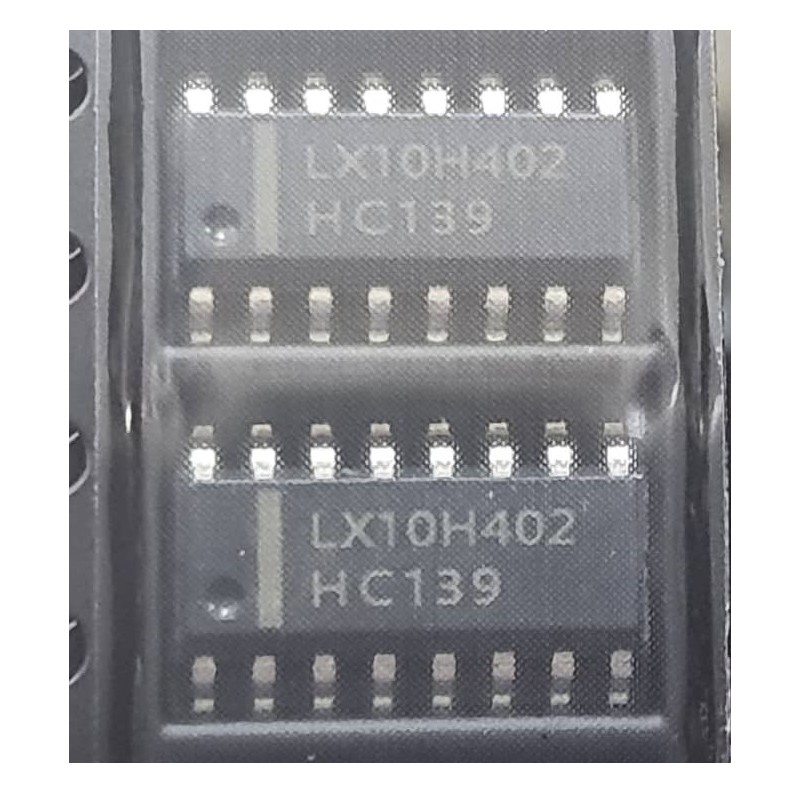

74HC139D - SMD

88,935 ریال

بدون مالیات 1الی 2 روز کاری

TTL 74139-SMD-دوتا ديمالتي پلکسر

Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Product: Decoders / Demultiplexers
- Logic Family: HC
- Number of Input Lines: 2 Input
- Number of Output Lines: 4 Output
- Propagation Delay Time: 44 ns
- Supply Voltage - Max: 6 V
- Supply Voltage - Min: 2 V
- Maximum Operating Temperature: + 85 C
- Mounting Style: Through Hole
- Package/Case: PDIP-16
- Packaging: Tube
- Brand: Texas Instruments
- Function: Decoder/Demultiplexer
- Height: 4.57 mm
- High Level Output Current: - 5.2 mA
- Length: 19.3 mm
- Logic Type: Decoders/Demultiplexers
- Low Level Output Current: 5.2 mA
- Maximum Clock Frequency: 28 MHz
- Minimum Operating Temperature: - 40 C
- Number of Circuits: Dual
- Operating Supply Voltage: 2 V to 6 V
- Operating Temperature Range: - 40 C to + 85 C
- Pd - Power Dissipation: 320 mW
- Series: SN74HC139
- Factory Pack Quantity: 25
- Supply Current - Max: 0.08 mA
- Technology: CMOS
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی74139 دارای دو عدد دی مالتی پلکسر 4 خروجی می باشد.
