ماژول SIPEED M1 AI

45,000,000 ریال
بدون مالیات 1الی 2 روز کاری

ماژول توسعه هوش مصنوعی SIPEED M1 MAIX K210

تعداد
موجود

1. Tutorial & Quick Start

MaixPy

2 Description

The MAIX Dock development board, part of SiPEED's MAIX product line, is an AIOT development board designed based on Canaan Technology's K210 edge intelligent computing chip (RISC-V architecture, 64-bit dual-core). Its streamlined design is compact and features an onboard Type-C port and USB-UART circuitry, allowing users to connect directly to a computer via a USB Type-C cable for development. It also features interfaces for 128Mbit Flash, LCD, DVP, and a Micro SD card, with all I/O pins exposed for easy expansion.

It can be turned on by powering on, no power-on operation is required

11

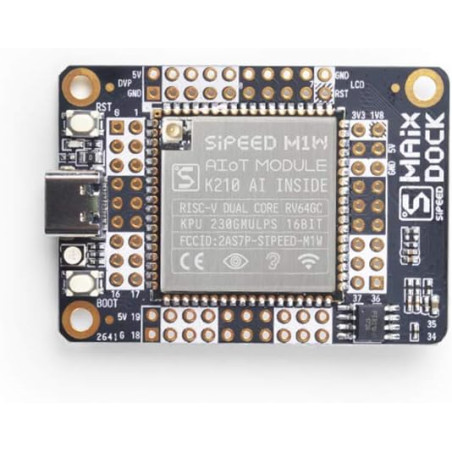

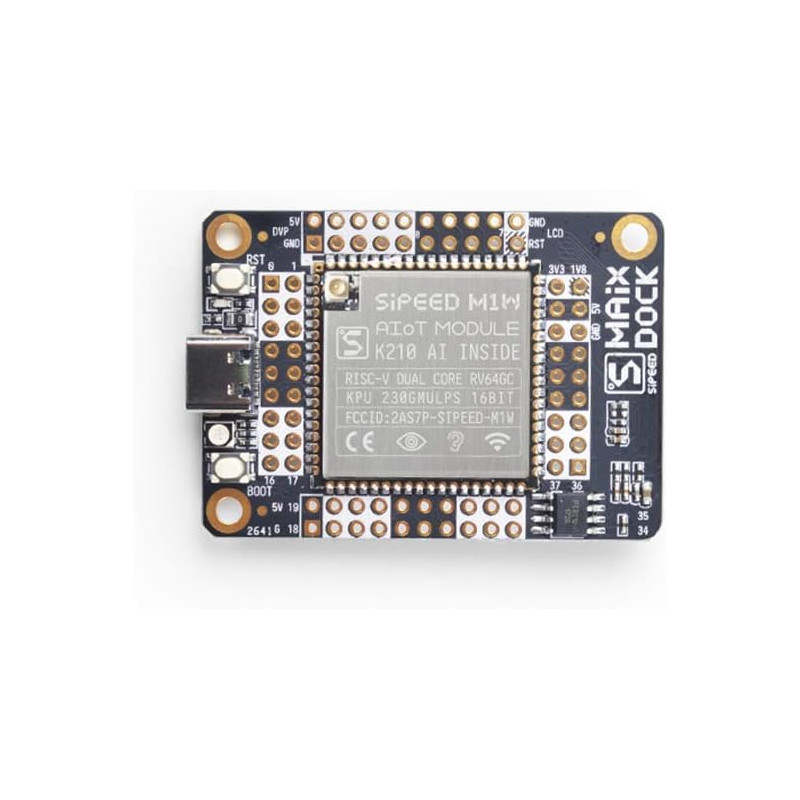

3. Appearance

11 11

4. Features

MaixDock is developed with the powerful M1W AI module as its core unit. Featuring a built-in 64-bit dual-core processor chip and 8MB of on-chip SRAM, the module excels in AI machine vision and audio performance. Built-in multiple hardware acceleration units (KPU, FPU, FFT, etc.), it boasts a total computing power of up to 1TOPS. This allows for the easy implementation of machine vision and audio algorithms for a wide range of application scenarios, as well as pre-processing for speech direction scanning and speech data output.

5. Application

Smart home, robot cleaners, smart speakers, electronic door locks, home monitoring, etc.;
medical industry applications, such as auxiliary diagnosis, medical image recognition;
intelligent industrial applications, such as industrial machinery, intelligent sorting, electrical equipment monitoring, etc.;
educational applications such as educational robots, intelligent interactive platforms, and educational efficiency inspections;
agricultural applications, such as agricultural monitoring, pest and disease monitoring, and automatic control, etc.

6. Parameters

K210 chip basic parameters
kernel RISC-V Dual Core 64bit, with FPU
Main frequency 400MHz (overclockable to 600MHz)
SRAM Built-in 8M Byte
Image Recognition QVGA@60fps/VGA@30fps
Speech Recognition Microphone array (8mics)
Network Model
  • Support for YOLOv3
  • Mobilenetv2
  • TinyYOLOv2
  • Face recognition, etc.
Deep Learning Framework Supports mainstream frameworks such as TensorFlow \ Keras \ Darknet \ Caffe
Peripherals FPIOA, UART, GPIO, SPI, I2C, I2S, TIMER
Video Processing
  • Neural Network Processing Unit (KPU)
  • FPU complies with IEEE754-2008 standard
  • Audio Processing Unit (APU)
  • Fast Fourier Transform Accelerator (FFT)
Development board parameters
Onboard resources
  • Button*2
  • RGB light*1
  • MEMS Microphone*1
  • USB to UART
  • 128Mbit Flash*1
Onboard interfaces
  • USB Type-C port
  • 24-pin DVP camera interface
  • 24-pin LCD interface
  • MicroSD card slot
  • Audio interface (supports external 2x3W speakers)
  • All IO pin headers are lead out
size 52.3*37.3mm
Supply voltage 5.0V @ 300mA (supply current must be greater than 300mA)
Operating temperature -30℃ ~85C
Software Development
Chip operating system FreeRTOS, RT-Thread, etc.
Development Environment MaixPy IDE, PlatformlO IDE, Arduino IDE, etc.
programming language C, C++, MicroPython

7. Information

Sipeed-Maix-Dock Download: Sipeed-Maix-Dock

Download Sipeed-Maix-Dock datasheet: Sipeed-Maix-Dock

Sipeed-Maix-Dock schematic download: Sipeed-Maix-Dock

8. Software Development

  1. MaixPy : MicroPython language development
  2. C language SDK: kendryte-standalone-sdk

IX. Product Technical Support

The Maix series of products can meet diverse customer needs in a variety of scenarios and are already widely used in the AIoT. Their quality and performance have earned an excellent reputation within the industry. Our dedicated technical team helps customers solve a wide range of hardware design and software issues. For professional technical  support and more detailed information, please contact support@sipeed.com
