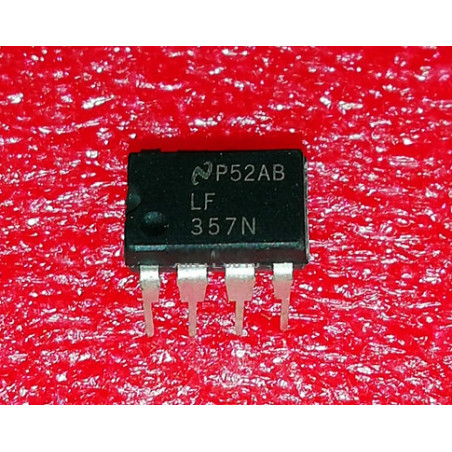

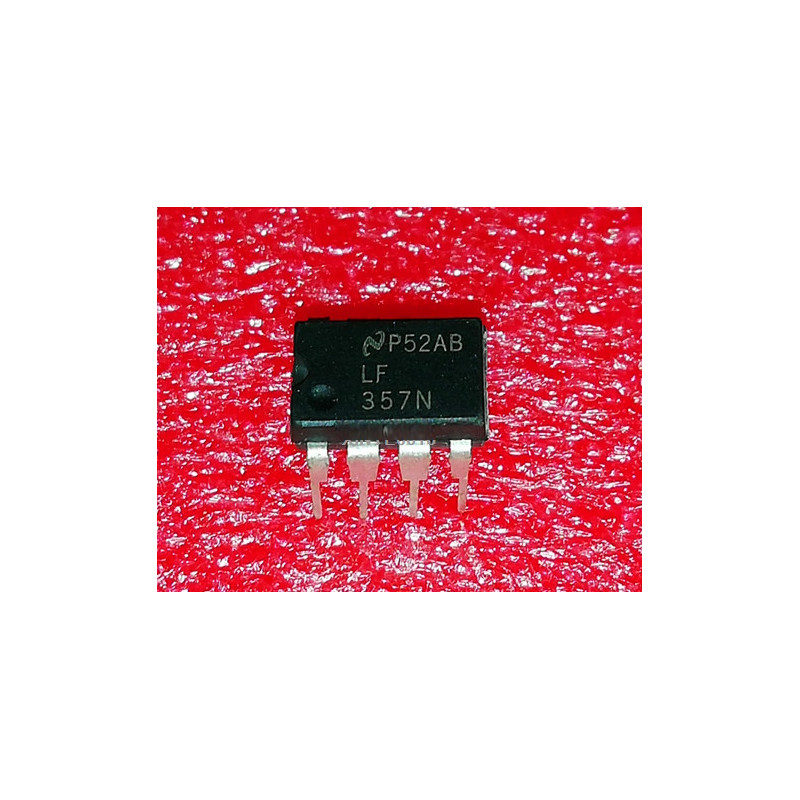

LF357N - DIP

275,000 ریال

بدون مالیات 1الی 2 روز کاری

WIDE BANDWIDTH SINGLE J-FET OPERATIONAL AMPLIFIERS

Product Category: Operational Amplifiers - Op Amps
- Manufacturer: NationalSemi
- RoHS: No
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Number of Channels: 1 Channel
- GBP - Gain Bandwidth Product: 5 MHz
- SR - Slew Rate: 12 V/us
- CMRR - Common Mode Rejection Ratio: 80 dB
- Ib - Input Bias Current: 200 pA
- Vos - Input Offset Voltage: 10 mV
- Operating Supply Current: 10 mA
- Maximum Operating Temperature: + 70 C
- Minimum Operating Temperature: 0 C
- Shutdown: No Shutdown
- Series: LF357
- Amplifier Type: Wideband Amplifier
- Brand: STMicroelectronics
- en - Input Voltage Noise Density: 15 nV/sqrt Hz
- In - Input Noise Current Density: 0.01 pA/sqrt Hz
- Maximum Dual Supply Voltage: +/- 22 V
- Operating Supply Voltage: +/- 22 V
- Pd - Power Dissipation: 570 mW
- Product: Operational Amplifiers
- Factory Pack Quantity:2500
- Supply Type: Dual
- Technology: BiFET
- Voltage Gain dB: 106.02 dB
- Unit Weight: 1 g
- آی سی LF357N یک آپ امپ ( تقویت کننده عملیاتی) با پهنای باند پهن و ورودی JFET و از نوع DIP می باشد.
