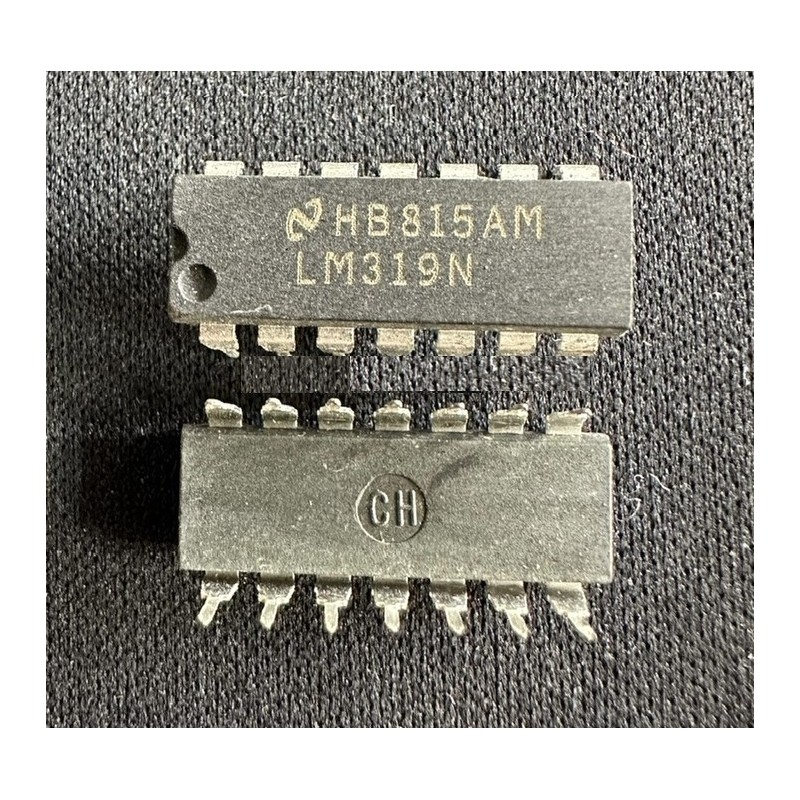

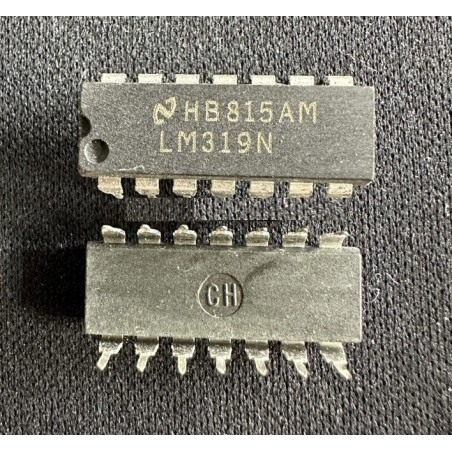

LM319N - DIP

508,200 ریال
بدون مالیات 1الی 2 روز کاری
Dual comparator=KA319
تعداد
موجود

  • Product Category: Analog Comparators
    • Manufacturer:NXP
    • RoHS: RoHS Compliant Details
    • Mounting Style: Through Hole
    • Package/Case: DIP-14
    • Number of Channels: 2 Channel
    • Output Type: Open Collector
    • Output Current per Channel: 25 mA
    • Ib - Input Bias Current: 1 uA
    • Vos - Input Offset Voltage: 8 mV
    • Supply Voltage - Max: 36 V
    • Supply Voltage - Min: +/- 15 V
    • Operating Supply Current: 12.5 mA
    • Response Time: 80 ns
    • Maximum Operating Temperature: + 70 C
    • Minimum Operating Temperature: 0 C
    • Packaging: Tube
    • Brand: Fairchild Semiconductor
    • Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
    • GBP - Gain Bandwidth Product: -
    • Height: 3.56 mm (Max)
    • Ios - Input Offset Current: 200 nA
    • Length: 19.56 mm (Max)
    • Maximum Dual Supply Voltage: +/- 15 V
    • Minimum Dual Supply Voltage: +/- 2.5 V
    • Operating Supply Voltage: 36 V
    • Pd - Power Dissipation: 500 mW
    • Product: Analog Comparators
    • Reference Voltage: No
    • Series: LM319
    • Shutdown: No Shutdown
    • Factory Pack Quantity: 1500
    • Supply Type: Single, Dual
    • Technology: Bipolar
    • Type: High Speed Comparator
    • Vcm - Common Mode Voltage: Negative Rail 1 V to Positive Rail 3 V
    • Voltage Gain dB: 92.04 dB
    • Width: 6.6 mm (Max)
    • Unit Weight: 1,620 g
    • آی سی LM319 یک مقایسه گر آنالوگ 2 کانال می باشد.

مشخصات

کاتالوگ
http://www.mouser.com/ds/2/149/LM319-1010956.pdf
پکیج
DIP-14
