XL4015+Current Mode

شناسه کالا: ۳۲۷۰۰۰۲

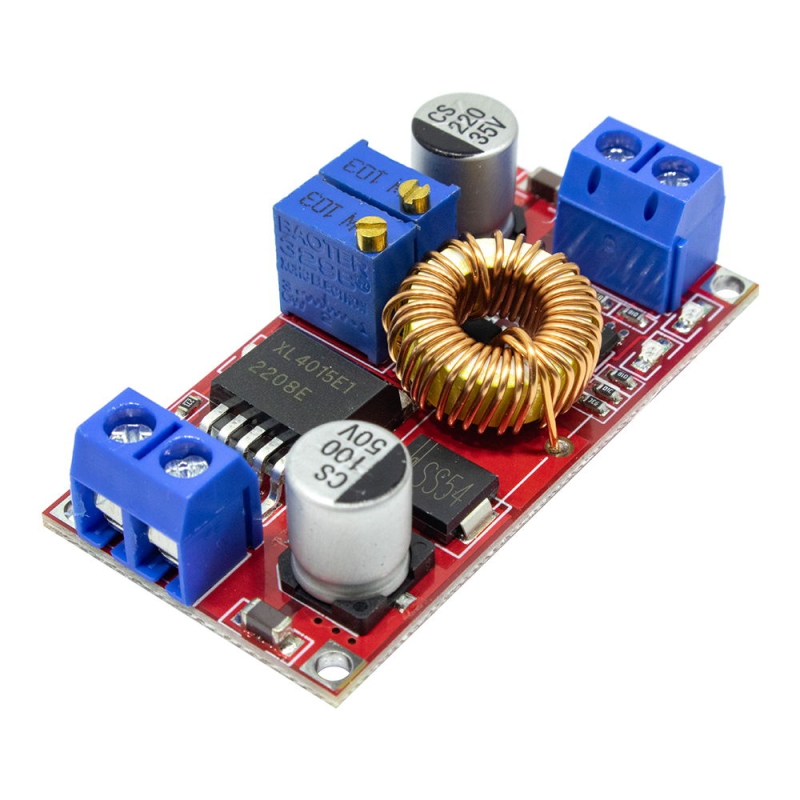

ماژول کاهنده STEP DOWN 5A با تراشه XL4015 و قابلیت کنترل جریان

درباره این محصول

Specification
Input voltage range:4～38VDC(Note:input voltage not exceeding 38V)
Output voltage range:1.25-36VDC adjustable
Output current: 0-5A
Output power: 75W
High efficiency up to 96%
Built in thermal shutdown function
Built in current limit function
Built in output short protection function (limiting current 8A)
Input reverse polarity protection: None (if required, high current diode in series with the input).
Connect way: Terminal or solder terminals, V-IN is input, V-OUT is output
L x W x H = 61.7 * 26.2 * 15mm
