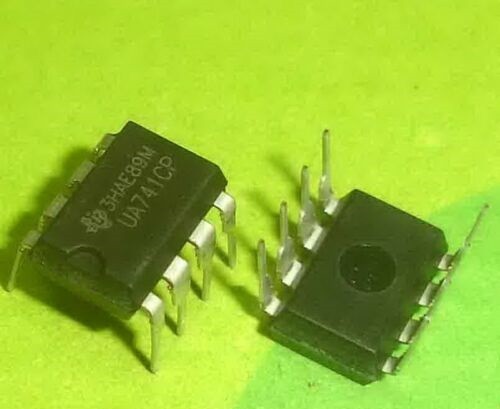

UA741CP – DIP

درباره این محصول

• Product Category: Operational Amplifiers - Op Amps
• Manufacturer: Fairchild Semiconductor
• RoHS: RoHS Compliant Details
• Mounting Style: Through Hole
• Package/Case: DIP-8
• Number of Channels: 1 Channel
• SR - Slew Rate: 0.5 V/us
• CMRR - Common Mode Rejection Ratio: 70 dB
• Ib - Input Bias Current: 500 nA
• Vos - Input Offset Voltage: 6 mV
• Operating Supply Current: 2.8 mA
• Maximum Operating Temperature: + 70 C
• Minimum Operating Temperature: 0 C
• Shutdown: No Shutdown
• Packaging: Tube
• Amplifier Type: General Purpose Amplifier
• Brand: Fairchild Semiconductor
• Height: 3.3 mm
• Length: 9.6 mm (Max)
• Maximum Dual Supply Voltage: +/- 18 V
• Pd - Power Dissipation: 500 mW
• Product: Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 77 dB
• Factory Pack Quantity: 50
• Supply Type: Dual
• Technology: Bipolar
• Voltage Gain dB: 106.02 dB
• Width: 6.4 mm
• Part # Aliases: LM741CN_NL
• Unit Weight: 1 g
• آی سی LM741 یک آپ امپ شامل یک تقویت کننده عملیاتی پر کاربرد می باشد.
