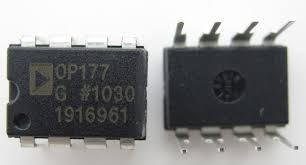

OP177GP – DIP

شناسه کالا: ۱۲۳۵۵

ULTRA PRECISION OPAMP

Package DIP-8

درباره این محصول

Product Category: Precision Amplifiers
Manufacturer: Analog Devices Inc.
RoHS: RoHS Compliant Details
Number of Channels: 1 Channel
GBP - Gain Bandwidth Product: 600 kHz
SR - Slew Rate: 0.3 V/us
CMRR - Common Mode Rejection Ratio: 140 dB
Ib - Input Bias Current: 2.8 nA
Vos - Input Offset Voltage: 20 uV
Supply Voltage - Max: 22 V
Operating Supply Current: 1.6 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Shutdown: No Shutdown
Mounting Style: Through Hole
Package/Case: PDIP-8
Packaging: Tube
Brand: Analog Devices
Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
Height: 3.43 mm
Input Voltage Range - Max: 14 V
Length: 9.27 mm
Maximum Dual Supply Voltage: +/- 18 V
Maximum Input Resistance: 45 MOhms
Minimum Dual Supply Voltage: +/- 3 V
Pd - Power Dissipation: 500 mW
Product: Precision Amplifiers
PSRR - Power Supply Rejection Ratio: 120 dB
Series: OP177
Factory Pack Quantity: 50
Type: Ultraprecision
Voltage Gain dB: 135.56 dB
Width: 7.24 mm
Unit Weight: 1 g
آی سی OP177 یک آپ امپ شامل یک تقویت کننده دقیق با ولتاژ آفست ورودی بسیار پایین 20µV می باشد.
