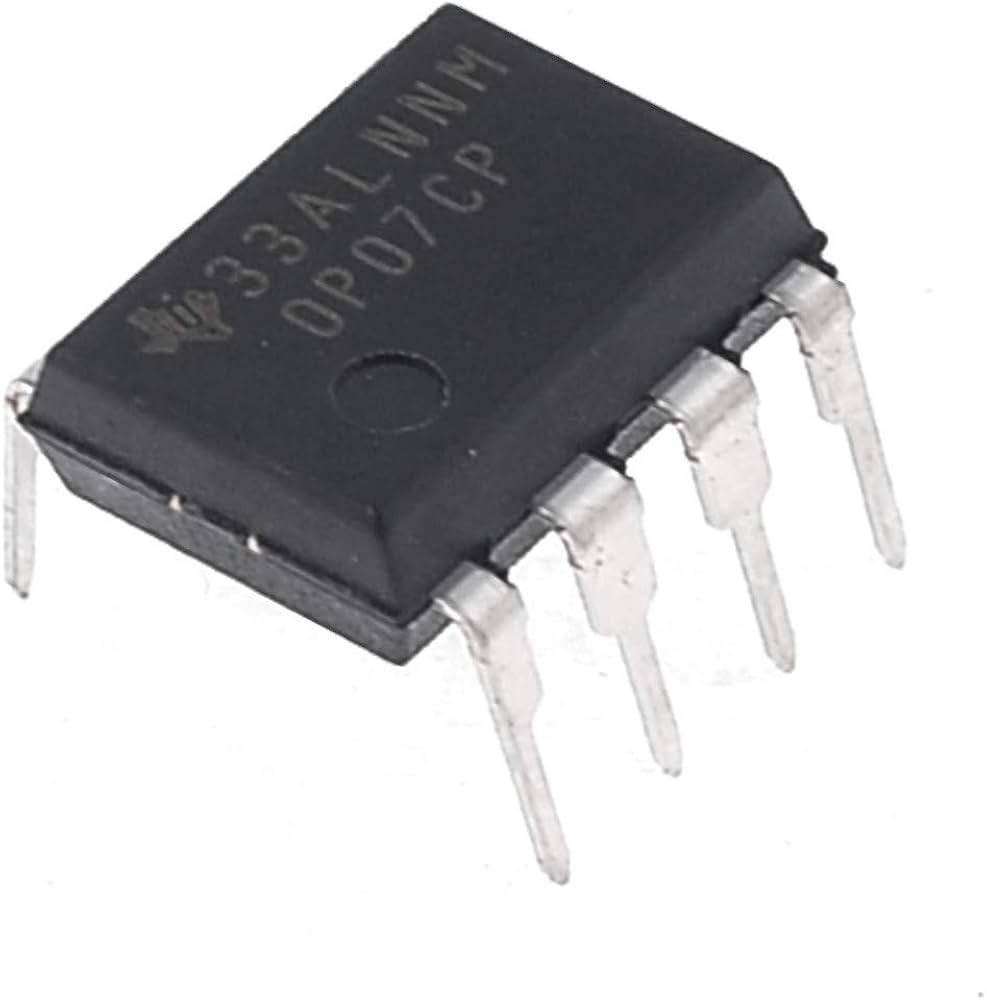

OP07CP – DIP

درباره این محصول

• Product Category: Operational Amplifiers - Op Amps
• Manufacturer: Maxim Integrated
• RoHS: RoHS Compliant Details
• Mounting Style: Through Hole
• Package/Case: PDIP-Narrow-8
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 600 kHz
• SR - Slew Rate: 0.3 V/us
• CMRR - Common Mode Rejection Ratio: 100 dB
• Ib - Input Bias Current: 0.007 uA
• Vos - Input Offset Voltage: 15 uV
• Maximum Operating Temperature: + 70 C
• Minimum Operating Temperature: 0 C
• Shutdown: No Shutdown
• Series: OP07
• Amplifier Type: Low Offset Voltage Amplifier
• Brand: Maxim Integrated
• Dual Supply Voltage: +/- 5 V or +/- 9 V or +/- 12 V or +/- 15 V
• en - Input Voltage Noise Density: 10.5 nV/sqrt Hz
• Height: 4.45 mm (Max)
• In - Input Noise Current Density: 0.35 pA/sqrt Hz
• Length: 9.91 mm (Max)
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 3 V
• Pd - Power Dissipation: 500 mW
• Product: Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 103.1 dB
• Supply Type: Dual
• Voltage Gain dB: 112.04 dB
• Width: 7.87 mm (Max)
• این آی سی یک نوع تقویت کننده عملیاتی میباشد آیسی OP07 دارای دو آپ امپ بسیار دقیق در حد نانو ومیکرو ولت را شناسایی می کند .
