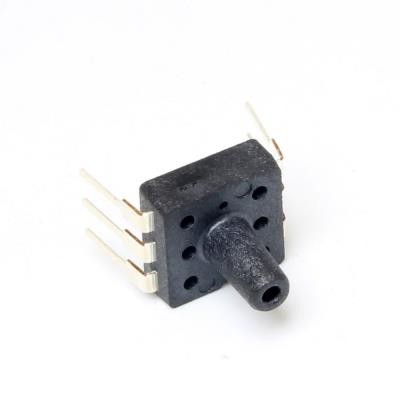

MPS20N0040D

درباره این محصول

• Specification
• A wide temperature range: -40 ~ 125 °CTable pressure type Output signal: analog-typeProtection Level: 3X
• Resistance value: 5 kOhm Own weight: 0.6g Linearity: + / -0.3%Hysteresis: + / -0.2%
• DIP/SMD packageEasy embedded OEM package
• Applications
• Instrumentationlevel measurementaltimetermedical applicationsAutomotive electronicsConsumer Electronics gas liquid pressure Industrial process controlAbsolute pressure differential pressure system applications
• Parameter
• Min
• Typical values
• Max
• Unit
• Range
• -
• 40
• Kpa
• Operating Temperature
• -40
• -
• 125
• °C
• Bridge  resistance
• 4.5
• 5
• 5.5
• kΩ
• Zero output
• -20
• +20
• mV
• The full-scale output
• 30
• 50
• 70
• mV
• Linearity
• -
• 0.2
• 0.3
• %FS
•
• Temperature Coefficient
• Resistance
• 2000
• 2200
• 2500
• ppm/°C
• Sensitivity
• -2000
• -2200
• -2500
• ppm/°C
• Zero drift
• -60
• -
• 60
• μV/°C
• Pressure hysteresis
• -
• -
• 0.2
• %FS
• Repeatability
• -
• -
• 0.2
• %FS
• Temperature hysteresis
• -
• -
• 0.2
• %FS
• Work Voltage
• -
• 5
• 10
• V
• Storage temperature
• -40
• -
• 150
• °C
• Pressure overload
•
•
• 3X
•
