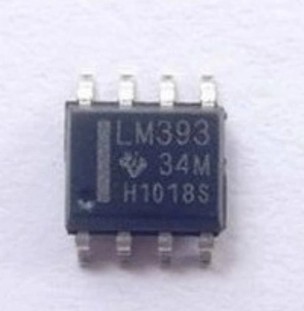

LM393D – SMD

درباره این محصول

• Product Category: Analog Comparators
• Manufacturer: ON Semiconductor
• RoHS: No
• Mounting Style: SMD/SMT
• Package/Case: SOIC-8
• Comparator Type: General Purpose
• Number of Channels: 2 Channel
• Output Type: Rail-to-Rail
• Output Current per Channel: 16 mA
• Ib - Input Bias Current: 50 nA
• Vos - Input Offset Voltage: 5 mV
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: 2 V
• Operating Supply Current: 1 mA
• Response Time: 1.5 us
• Maximum Operating Temperature: + 70 C
• Minimum Operating Temperature: 0 C
• Packaging: Tube
• Brand: ON Semiconductor
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
• GBP - Gain Bandwidth Product: -
• Height: 1.5 mm (Max)
• Length: 5 mm (Max)
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: 1 V
• Operating Supply Voltage: 3 V, 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V
• Pd - Power Dissipation: 570 mW
• Product: Analog Comparators
• Reference Voltage: Yes
• Shutdown: No Shutdown
• Factory Pack Quantity: 2500
• Supply Type: Single, Dual
• Technology: Bipolar
• Type: Low Offset Comparator
• Vcm - Common Mode Voltage: Negative Rail to Positive Rail - 1.5 V
• Voltage Gain dB: 106.02 dB
• Width: 4 mm (Max)
• Unit Weight: 540 mg
• آی سی LM393 یک مقایسه گر آنالوگ 2 کانال می باشد.
