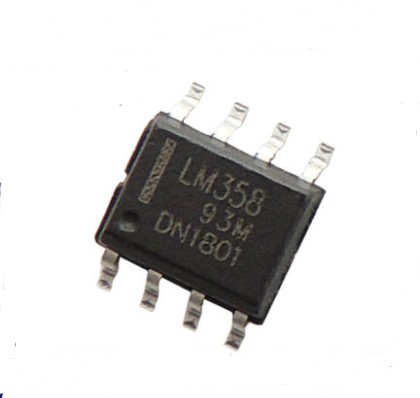

LM358D – SMD

درباره این محصول

• Product Category: Operational Amplifiers - Op Amps
• Manufacturer: Texas Instruments
• RoHS: RoHS Compliant Details
• Mounting Style: Through Hole
• Package/Case: SO-8
• Supply Voltage - Max: 32 V
• Output Current per Channel: 30 mA
• Number of Channels: 2 Channel
• GBP - Gain Bandwidth Product: 700 kHz
• SR - Slew Rate: 0.3 V/us
• CMRR - Common Mode Rejection Ratio: 65 dB
• Ib - Input Bias Current: 250 nA
• Vos - Input Offset Voltage: 7 mV
• Supply Voltage - Min: 3 V
• Operating Supply Current: 1.2 mA
• Maximum Operating Temperature: + 70 C
• Minimum Operating Temperature: 0 C
• Shutdown: No Shutdown
• Series: LM358
• Packaging: Tube
• Amplifier Type: High Gain Amplifier
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
• en - Input Voltage Noise Density: 40 nV/sqrt Hz
• Height: 4.57 mm
• Length: 9.81 mm
• Maximum Dual Supply Voltage: +/- 16 V
• Minimum Dual Supply Voltage: +/- 1.5 V
• Operating Supply Voltage: 3 V to 32 V, +/- 1.5 V to +/- 16 V
• Product: Operational Amplifiers
• Factory Pack Quantity: 50
• Supply Type: Single, Dual
• Technology: Bipolar
• Vcm - Common Mode Voltage: Negative Rail to Positive Rail - 1.5 V
• Voltage Gain dB: 100 dB
• Width: 6.35 mm
• Unit Weight: 440 mg
• آی سی LM358 یک آپ امپ شامل دو تقویت کننده کم مصرف می باشد.از ویژگیهای این تراشه می توان به رنج وسیع ولتاژ تغذیه و مصرف کم تراشه اشاره کرد.
