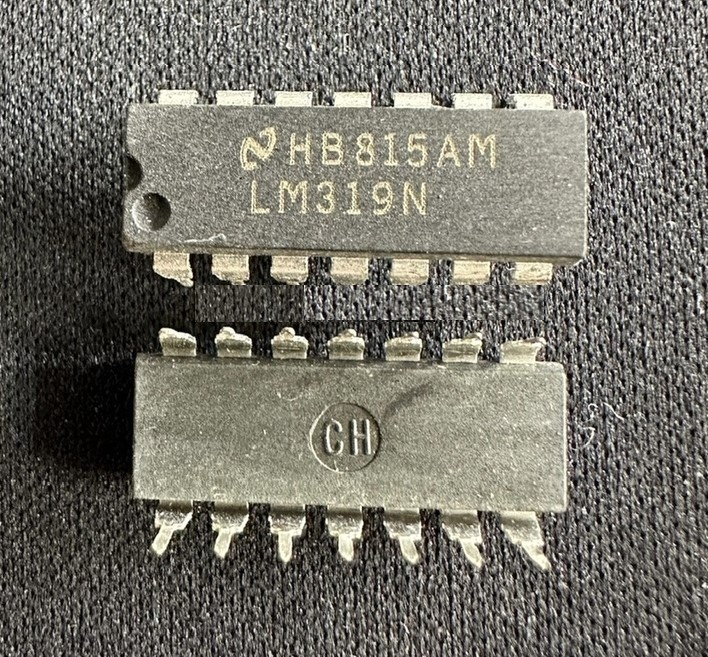

LM319N – DIP

درباره این محصول

• Product Category: Analog Comparators
• Manufacturer:National & NXP
• RoHS: RoHS Compliant Details
• Mounting Style: Through Hole
• Package/Case: DIP-14
• Number of Channels: 2 Channel
• Output Type: Open Collector
• Output Current per Channel: 25 mA
• Ib - Input Bias Current: 1 uA
• Vos - Input Offset Voltage: 8 mV
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: +/- 15 V
• Operating Supply Current: 12.5 mA
• Response Time: 80 ns
• Maximum Operating Temperature: + 70 C
• Minimum Operating Temperature: 0 C
• Packaging: Tube
• Brand: Fairchild Semiconductor
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
• GBP - Gain Bandwidth Product: -
• Height: 3.56 mm (Max)
• Ios - Input Offset Current: 200 nA
• Length: 19.56 mm (Max)
• Maximum Dual Supply Voltage: +/- 15 V
• Minimum Dual Supply Voltage: +/- 2.5 V
• Operating Supply Voltage: 36 V
• Pd - Power Dissipation: 500 mW
• Product: Analog Comparators
• Reference Voltage: No
• Series: LM319
• Shutdown: No Shutdown
• Factory Pack Quantity: 1500
• Supply Type: Single, Dual
• Technology: Bipolar
• Type: High Speed Comparator
• Vcm - Common Mode Voltage: Negative Rail 1 V to Positive Rail 3 V
• Voltage Gain dB: 92.04 dB
• Width: 6.6 mm (Max)
• Unit Weight: 1,620 g
• آی سی LM319 یک مقایسه گر آنالوگ 2 کانال می باشد.
