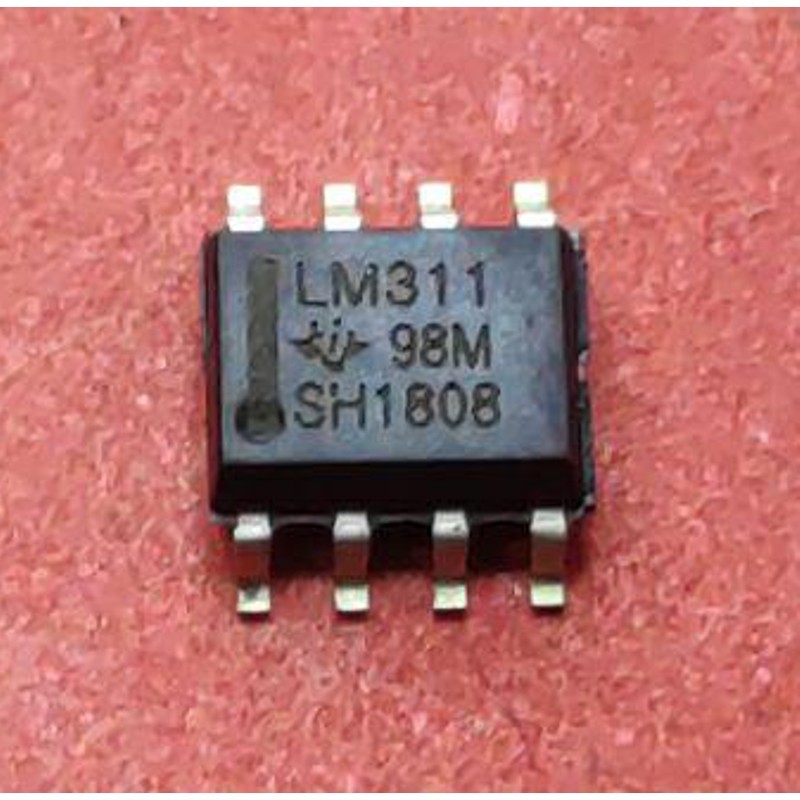

LM311D – SMD

درباره این محصول

• Product Category: Analog Comparators Manufacturer: ON Semiconductor
• RoHS: No
• Mounting Style: SMD/SMT
• Package/Case: SOIC-8
• Comparator Type: General Purpose
• Number of Channels: 1 Channel
• Output Type: Complementary
• Output Current per Channel: 7.5 mA
• Ib - Input Bias Current: 250 nA
• Vos - Input Offset Voltage: 7.5 mV
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: 5 V
• Operating Supply Current: 2.4 mA
• Response Time: 200 ns
• Maximum Operating Temperature: + 70 C
• Minimum Operating Temperature: 0 C
• Packaging: Tube
• Brand: ON Semiconductor
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
• GBP - Gain Bandwidth Product: -
• Height: 1.5 mm (Max)
• Length: 5 mm (Max)
• Maximum Dual Supply Voltage: +/- 15 V
• Minimum Dual Supply Voltage: 2.5 V
• Operating Supply Voltage: 9 V, 12 V, 15 V, 18 V, 24 V, 28 V
• Pd - Power Dissipation: 625 mW
• Product: Analog Comparators
• Reference Voltage: No
• Shutdown: No Shutdown
• Factory Pack Quantity: 98
• Supply Type: Single, Dual
• Technology: Bipolar
• Type: Comparator
• Vcm - Common Mode Voltage: Negative Rail - 14.5 V to Positive Rail + 13 V
• Voltage Gain dB: 106.02 dB
• Width: 4 mm (Max)
• Unit Weight: 540 mg
• آی سی LM311 یک مقایسه گر آنالوگ تک کانال می باشد.
