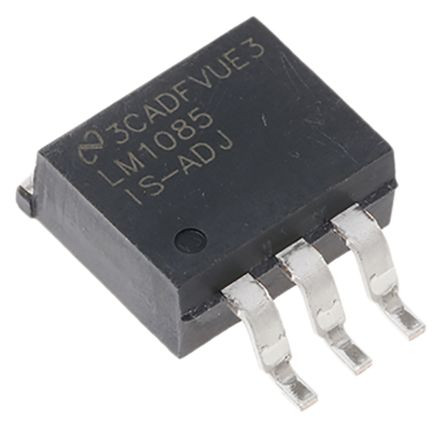

LM1085IS-ADJ

درباره این محصول

• Manufacturer: Texas Instruments
• Product Category: LDO Voltage Regulators
• RoHS: Details
• Mounting Style: SMD/SMT
• Package / Case: TO-263-3
• Output Voltage: 1.2 V to 15 V
• Output Current: 3 A
• Number of Outputs: 1 Output
• Polarity: Positive
• Quiescent Current: 10 mA
• Input Voltage MAX: 29 V
• Input Voltage MIN: 2.6 V
• Output Type: Adjustable
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Dropout Voltage: 1.3 V
• Series: LM1085
• Packaging: Cut Tape
• Packaging: MouseReel
• Packaging: Reel
• Operating Temperature Range: - 40 C to + 125 C
• Product: Linear Regulators
• Type: Low Dropout Positive Regulator
• Brand: Texas Instruments
• Dropout Voltage - Max: 1.5 V at 3 A
• PSRR / Ripple Rejection - Typ: 75 dB
• Voltage Regulation Accuracy: 1.5 %
• Ib - Input Bias Current: 5 mA
• Line Regulation: 0.2 %
• Load Regulation: 0.3 %
• Moisture Sensitive: Yes
• Operating Supply Current: 5 mA
• Product Type: LDO Voltage Regulators
• Reference Voltage: 1.262 V
• Factory Pack Quantity: 500
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 2 g
