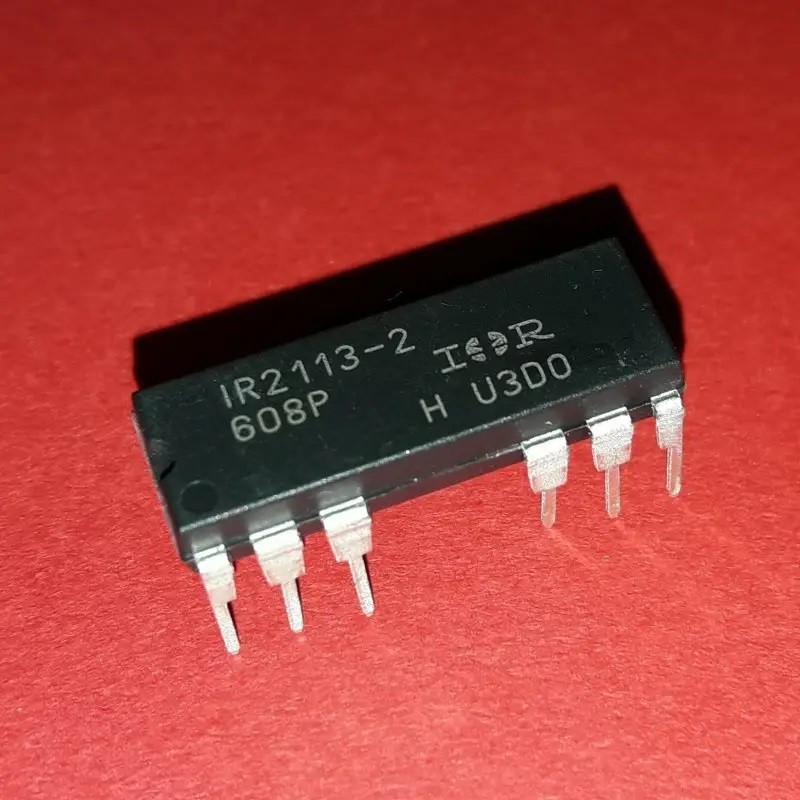

IR2113-2 – DIP

درباره این محصول

• Product Category: Gate Drivers
• Manufacturer: Infineon
• RoHS: RoHS Compliant Details
• Mounting Style: Through Hole
• Package/Case: PDIP-16
• Product: Half-Bridge Drivers
• Number of Drivers: 2 Driver
• Output Current: 2.5 A
• Configuration: Non-Inverting
• Rise Time: 35 ns
• Fall Time: 25 ns
• Supply Voltage - Max: 20 V
• Supply Voltage - Min: 10 V
• Operating Supply Current: 340 uA
• Maximum Operating Temperature: + 125 C
• Type: High and Low Side
• Packaging: Tube
• Brand: Infineon Technologies
• Features: Independent
• Height: 5.33 mm (Max)
• Length: 20.19 mm (Max)
• Logic Type: CMOS, LSTTL
• Maximum Turn-Off Delay Time: 94 ns
• Maximum Turn-On Delay Time: 120 ns
• Minimum Operating Temperature: - 40 C
• Number of Outputs: 2
• Pd - Power Dissipation: 1.6 W
• Propagation Delay - Max: 150 ns
• Factory Pack Quantity: 25
• Width: 7.11 mm (Max)
• Unit Weight: 1,620 g
• آی سی IR2113 یک درایور ماسفت قدرت و IGBT برای دو ساید بالا و پایین یک Leg با تحمل ولتاژ 600 ولت می باشد.
