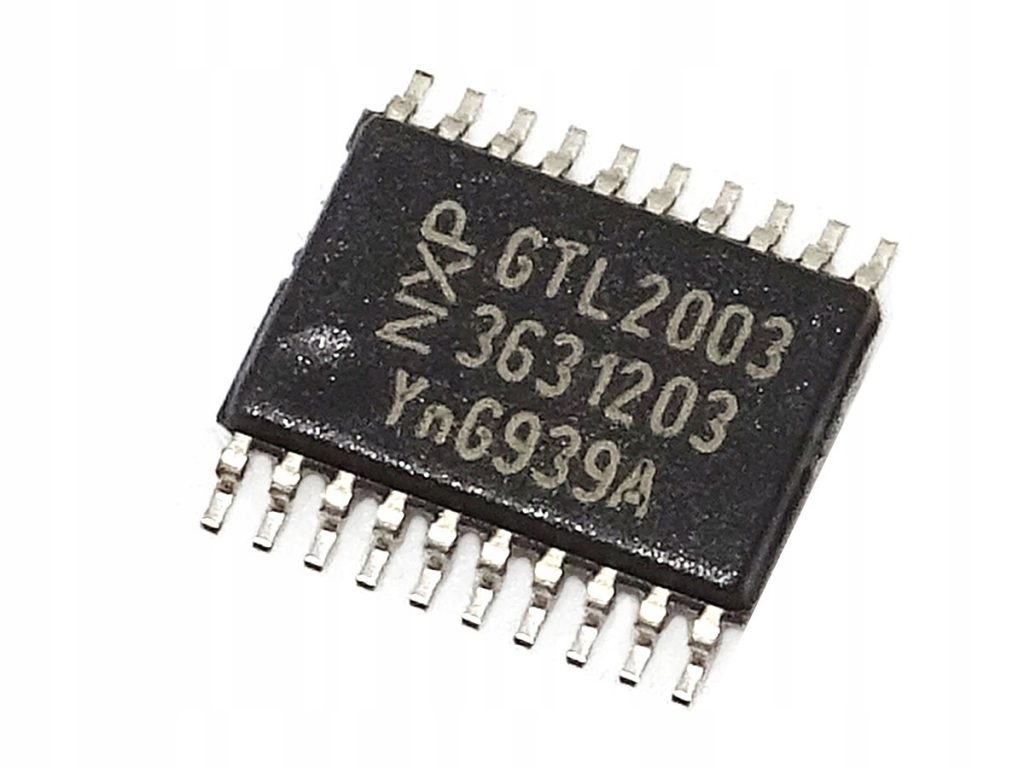

GTL2003PW – SMD

درباره این محصول

•  8-bit bidirectional low voltage translator 
• Allows voltage level translation between 0.8 V, 0.9 V, 1.0 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V, and 5 V buses which allows direct interface with GTL, GTL+, LVTTL/TTL and 5 V CMOS levels 
• Provides bidirectional voltage translation with no direction pin
•  Low 6.5  ON-state resistance (Ron) between input and output pins (Sn/Dn) 
• Supports hot insertion 
• No power supply required: will not latch up
• 5V tolerant inputs 
• Low standby current 
• Flow-through pinout for ease of printed-circuit board trace routing 
• ESD protection exceeds 2000V HBM per JESD22-A114, and 1000 V CDM per JESD22-C101 
• Packages offered: TSSOP20,
