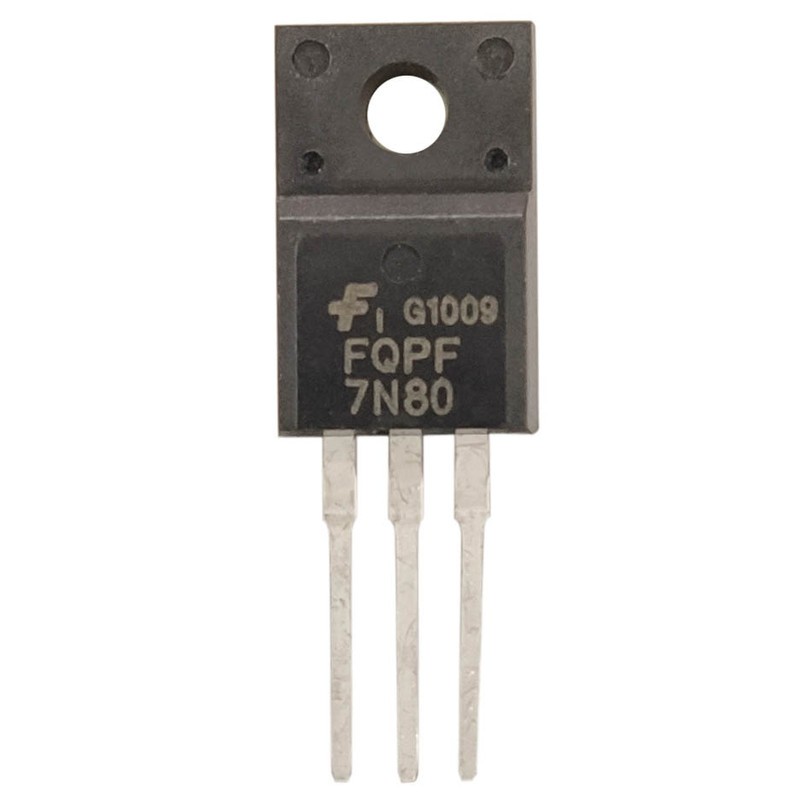

FQPF7N80 اصلی

درباره این محصول

• Manufacturer:FAIRCHILD Semiconductor
• Product Category:MOSFET
• RoHS:Details
• Technology:Si
• Mounting Style:Through Hole
• Package / Case:TO-220FP-3
• Number of Channels:1 Channel
• Transistor Polarity:N-Channel
• Vds - Drain-Source Breakdown Voltage:800 V
• Id - Continuous Drain Current:6.6 A
• Rds On - Drain-Source Resistance:1.9 Ohms
• Vgs - Gate-Source Voltage:30 V
• Minimum Operating Temperature:- 55 C
• Maximum Operating Temperature:+ 150 C
• Pd - Power Dissipation:56 W
• Configuration:Single
• Channel Mode:Enhancement
• Tradename:QFET
• Packaging:Tube
• Height:16.07 mm
• Length:10.36 mm
• Series:FQPF7N80C
• Transistor Type:1 N-Channel
• Type:MOSFET
• Width:4.9 mmBrand:ON Semiconductor / Fairchild
• Forward Transconductance - Min:5.5 S
• Fall Time:60 ns
• Product Type:MOSFET
• Rise Time:100 ns
• Factory Pack Quantity:1000
• Subcategory:MOSFETs
• Typical Turn-Off Delay Time:50 ns
• Typical Turn-On Delay Time:35 ns
• Unit Weight:2G
