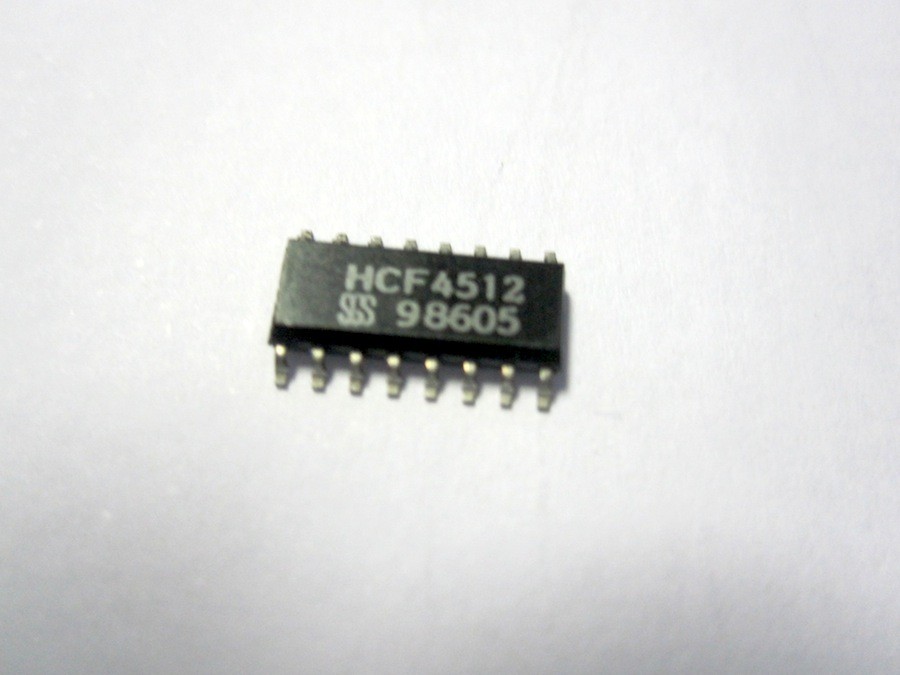

CD4512BM – SMD

درباره این محصول

• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• Manufacturer: Texas Instruments
• RoHS: RoHS Compliant Details
• Product: Selectors / Multiplexers
• Logic Family: CD4000
• Number of Bits: 8 bit
• Number of Input Lines: 8 Input
• Number of Output Lines: 1 Output
• Propagation Delay Time: 140 ns
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 3 V
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package/Case: SOIC-16
• Packaging: Tube
• Brand: Texas Instruments
• Function: Multiplexer
• Height: 4.57 mm
• High Level Output Current: - 1.5 mA
• Length: 19.3 mm
• Logic Type: Data Selector
• Low Level Output Current: 1.5 mA
• Maximum Clock Frequency: 8 MHz
• Minimum Operating Temperature: - 55 C
• Number of Circuits: Octal
• Operating Supply Voltage: 3 V to 18 V
• Operating Temperature Range: - 55 C to + 125 C
• Pd - Power Dissipation: 275 mW
• Quiescent Current: 80 nA
• Series: CD4512B
• Factory Pack Quantity: 25
• Supply Current - Max: 0.08 uA
• Technology: CMOS
• Width: 6.35 mm
• Unit Weight: 1 g
• آی سی 4512 یک دیکدر 8 به 1 و از خانواده CMOS می باشد.
