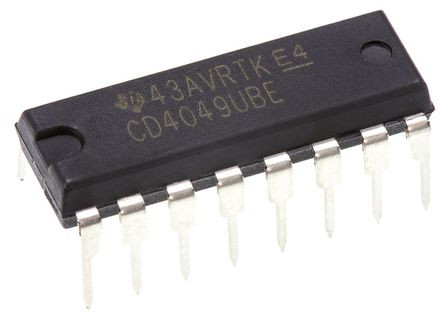

CD4049UBE – DIP

درباره این محصول

• Product Category: Buffers & Line Drivers Manufacturer: Texas Instruments
• RoHS: RoHS Compliant Details
• Number of Input Lines: 6 Input
• Number of Output Lines: 6 Output
• Polarity: Inverting
• Supply Voltage - Max: 20 V
• Supply Voltage - Min: - 0.5 V
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package/Case: PDIP-16
• Packaging: Tube
• Brand: Texas Instruments
• Function: Buffer/Converter
• Height: 4.57 mm
• High Level Output Current: - 5.2 mA
• Input Signal Type: Single-Ended
• Length: 19.3 mm
• Logic Family: CD4000
• Logic Type: CMOS
• Low Level Output Current: 25 mA
• Minimum Operating Temperature: - 55 C
• Number of Channels: 5
• Operating Supply Current: 30 uA
• Operating Supply Voltage: 3 V to 18 V
• Operating Temperature Range: - 55 C to + 125 C
• Output Type: CMOS
• Propagation Delay Time: 120 ns at 5 V, 65 ns at 10 V, 50 ns at 15 V
• Quiescent Current: 40 nA
• Series: CD4049UB , HCF4049UB , HEF4049UB
• Factory Pack Quantity: 25
• Supply Current - Max: 20 uA
• Technology: CMOS
• Width: 6.35 mm
• Unit Weight: 1 g
• آی سی CD4049UBE شامل شش بافر معکوس کننده می باشد.
