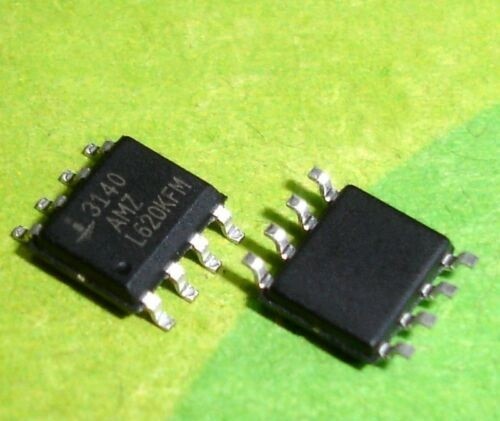

CA3140AMZ – SMD

درباره این محصول

• Product Category: Operational Amplifiers - Op Amps
• Manufacturer: Intersil
• RoHS: RoHS Compliant Details
• Mounting Style: SMD/SMT
• Package/Case: SOIC-8
• Supply Voltage - Max: 36 V
• Output Current per Channel: 40 mA
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 4.5 MHz
• SR - Slew Rate: 9 V/us
• CMRR - Common Mode Rejection Ratio: 70 dB
• Ib - Input Bias Current: 40 pA
• Vos - Input Offset Voltage: 5 mV
• Supply Voltage - Min: 4 V
• Operating Supply Current: 4 mA
• Maximum Operating Temperature: + 125 C
• Minimum Operating Temperature: - 55 C
• Shutdown: No Shutdown
• Series: CA3140A
• Packaging: Tube
• Amplifier Type: General Purpose Amplifier
• Brand: Intersil
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
• en - Input Voltage Noise Density: 40 nV/sqrt Hz at +/- 15 V
• Height: 1.5 mm (Max)
• Length: 5 mm (Max)
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 2 V
• Operating Supply Voltage: 4 V to 36 V, +/- 2 V to +/- 18 V
• Product: Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 80 dB (Typ)
• Factory Pack Quantity: 98
• Supply Type: Single, Dual
• Technology: BiCMOS
• Voltage Gain dB: 100 dB
• Width: 4 mm (Max)
• Unit Weight: 540 mg
• آی سی CA3140یک آپ امپ شامل یک تقویت کننده عملیاتی است که ترکیبی از ویژگیهای ترانزیستورهای PMOS ولتاژ بالا و ترانزیستورهای دو قطبی را در یک چیپ ارائه می دهد.
