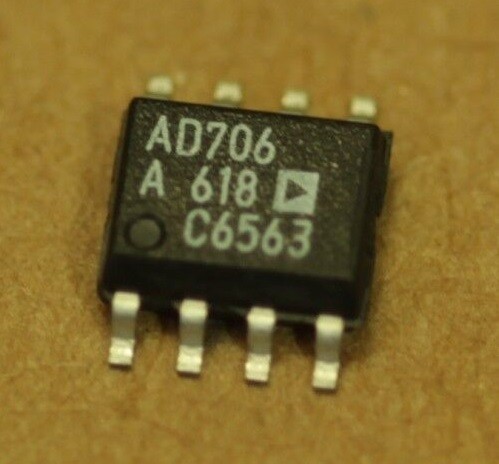

AD706ARZ

درباره این محصول

• Manufacturer:Analog Devices Inc.
• Product Category:Precision Amplifiers
• Series:AD706
• Number of Channels:2 Channel
• GBP - Gain Bandwidth Product:800 kHz
• SR - Slew Rate:150 mV/us
• CMRR - Common Mode Rejection Ratio:132 dB
• Output Current per Channel:15 mA
• Ib - Input Bias Current:500 pA
• Vos - Input Offset Voltage:100 uV
• en - Input Voltage Noise Density:17 nV/sqrt Hz
• Supply Voltage - Max:18 V, +/- 18 V
• Supply Voltage - Min:2 V, +/- 2 V
• Operating Supply Current:800 uA
• Minimum Operating Temperature:- 40 C
• Maximum Operating Temperature:+ 85 C
• Shutdown:No Shutdown
• Mounting Style:SMD/SMT
• Package/Case:SOIC-8
• Packaging:Tube
• Brand:Analog Devices
• Dual Supply Voltage:+/- 15 V
• Height:1.5 mm
• Input Voltage Range - Max:14 V
• Length:5 mm
• Maximum Dual Supply Voltage:+/- 18 V
• Minimum Dual Supply Voltage:+/- 2 V
• Operating Supply Voltage:2 V to 18 V
• Pd - Power Dissipation:650 mW
• Product Type:Precision Amplifiers
• PSRR - Power Supply Rejection Ratio:106 dB
• Factory Pack Quantity:98
• Subcategory:Amplifier ICs
• Type:General Purpose Amplifier
• Voltage Gain dB:126.02 dB
• Width:4 mm
• Unit Weight:540 mg
