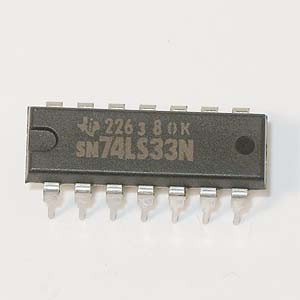

74LS33 – DIP

درباره این محصول

• Product Category: Logic Gates
• Manufacturer: Texas Instruments
• RoHS: RoHS Compliant Details
• Product: Single-Function Gate
• Logic Function: NOR
• Logic Family: LS
• Number of Gates: 4 Gate
• Number of Input Lines: 2 Input
• Number of Output Lines: 1 Output
• High Level Output Current: - 48 mA
• Low Level Output Current: 0 mA
• Propagation Delay Time: 18 ns
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Maximum Operating Temperature: + 70 C
• Mounting Style: Through Hole
• Package/Case: PDIP-14
• Packaging: Tube
• Brand: Texas Instruments
• Function: Quad 2 Input
• Height: 4.57 mm
• Input Type: TTL
• Length: 19.3 mm
• Logic Type: 2-Input NOR
• Minimum Operating Temperature: 0 C
• Number of Bits: 4 bit
• Operating Supply Current: 16.5 uA
• Operating Supply Voltage: 5 V
• Operating Temperature Range: 0 C to + 70 C
• Output Type: TTL
• Series: SN74LS33
• Factory Pack Quantity: 25
• Width: 6.35 mm
• Unit Weight: 1 g
• آی سی بافر 7433 شامل 4 عدد گیت NOR دو ورودی میباشد.
