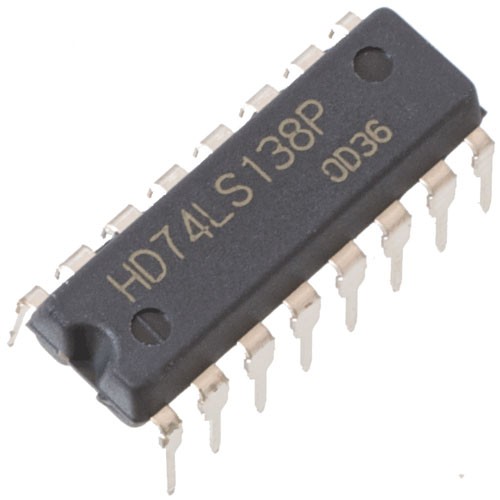

74LS138 – DIP

درباره این محصول

• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers Manufacturer: Texas Instruments
• RoHS: RoHS Compliant Details
• Product: Decoders / Demultiplexers
• Logic Family: LS
• Number of Input Lines: 3 Input
• Number of Output Lines: 8 Output
• Propagation Delay Time: 41 ns
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Maximum Operating Temperature: + 70 C
• Mounting Style: Through Hole
• Package/Case: PDIP-16
• Packaging: Tube
• Brand: Texas Instruments
• Function: Decoder/Demultiplexer
• Height: 4.57 mm
• High Level Output Current: - 0.4 mA
• Length: 19.3 mm
• Logic Type: Decoders/Demultiplexers
• Low Level Output Current: 8 mA
• Maximum Clock Frequency: 35 MHz
• Minimum Operating Temperature: 0 C
• Number of Circuits: Quad
• Operating Supply Voltage: 5 V
• Operating Temperature Range: 0 C to + 70 C
• Pd - Power Dissipation: 1 mW
• Series: SN74LS138
• Factory Pack Quantity: 25
• Supply Current - Max: 6.3 mA
• Technology: Bipolar
• Width: 6.35 mm
• Unit Weight: 1 g
• آی سی 74138شامل یک دیکودر/دی مالتی پلکسر 1 به 8 می باشد.
