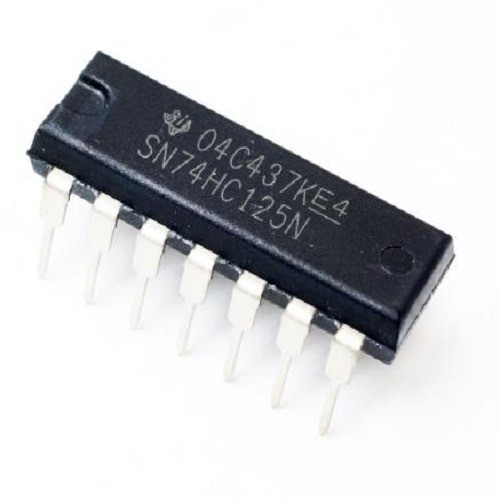

74HC125 – DIP

درباره این محصول

• Product Category: Buffers & Line Drivers
• Manufacturer: Texas Instruments
• RoHS: RoHS Compliant Details
• Number of Input Lines: 4 Input
• Number of Output Lines: 4 Output
• Polarity: Non-Inverting
• Supply Voltage - Max: 6 V
• Supply Voltage - Min: 2 V
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package/Case: PDIP-14
• Packaging: Tube
• Brand: Texas Instruments
• Function: Buffer/Line Driver
• Height: 3.3 mm
• High Level Output Current: - 7.8 mA
• Input Signal Type: Single-Ended
• Length: 19.05 mm
• Logic Family: HC
• Logic Type: CMOS
• Low Level Output Current: 7.8 mA
• Minimum Operating Temperature: - 55 C
• Number of Channels: 4
• Operating Supply Current: 80 uA
• Operating Supply Voltage: 2 V to 6 V
• Operating Temperature Range: - 55 C to + 125 C
• Output Type: 3-State
• Propagation Delay Time: 100 ns at 2 V, 20 ns at 4.5 V, 17 ns at 6 V
• Quiescent Current: 8 uA
• Series: CD74HC125
• Factory Pack Quantity: 25
• Supply Current - Max: 8 uA
• Technology: CMOS
• Width: 6.35 mm
• Unit Weight: 1 g
• آی سی 74125 یک بافر 4 تایی غیر معکوس کننده می باشد.
