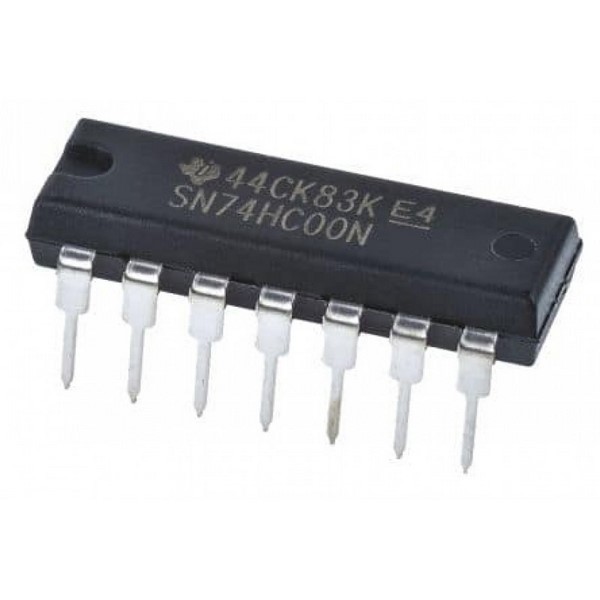

74HC00 – DIP

درباره این محصول

• Product Category: Logic Gates
• Manufacturer: NXP
• RoHS: RoHS Compliant Details
• Product: Single-Function Gate
• Logic Function: NAND
• Logic Family: 74HC
• Number of Gates: 4 Gate
• Number of Input Lines: 8 Input
• Number of Output Lines: 4 Output
• High Level Output Current: - 5.2 mA
• Low Level Output Current: 5.2 mA
• Propagation Delay Time: 7 ns
• Supply Voltage - Max: 6 V
• Supply Voltage - Min: 2 V
• Maximum Operating Temperature: + 125 C
• Mounting Style: PDIP
• Package/Case: DIP-14
• Packaging: Tube
• Brand: NXP Semiconductors
• Function: NAND
• Height: 1.45 mm (Max)
• Length: 8.75 mm (Max)
• Logic Type: Quad NAND Gate
• Minimum Operating Temperature: - 40 C
• Operating Supply Voltage: 2 V to 6 V
• Factory Pack Quantity: 1140
• Width: 4 mm (Max)
• آی سی  7400 یک آی سی TTL و دارای 4 گیت Nand دو ورودی می باشد .
